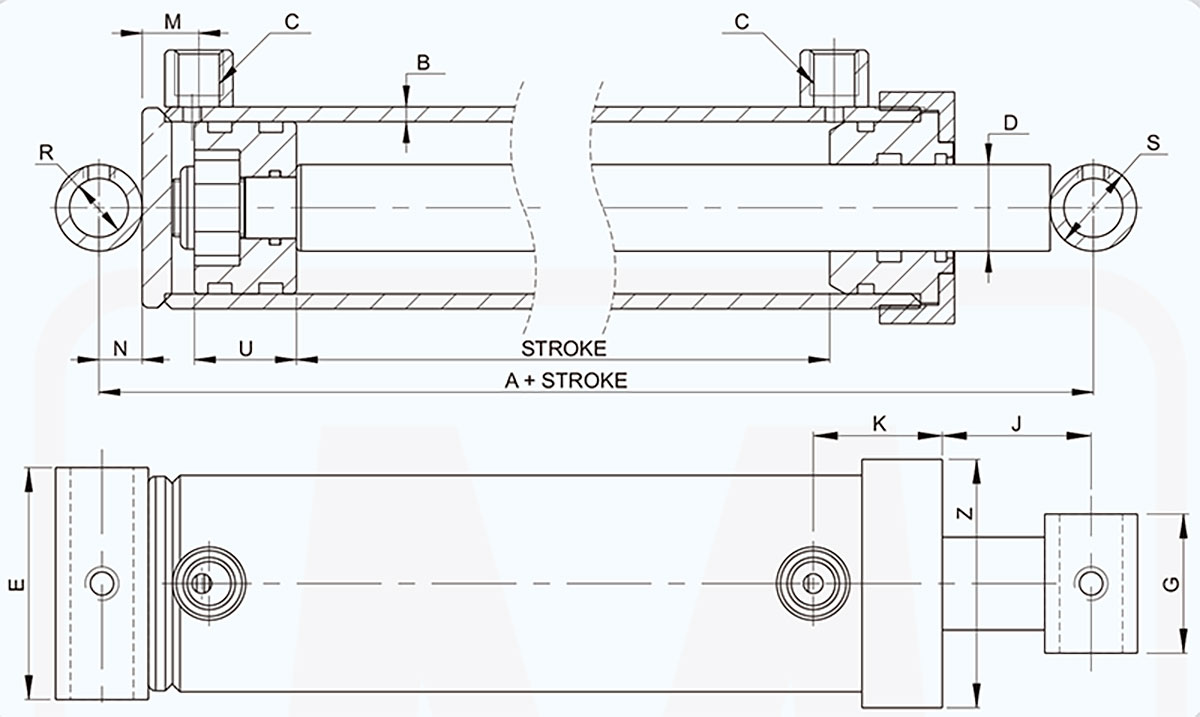

BORE | A | B | C | D | E | G | J | K | M | N | R | S | U | Z |
5” | 11” | .307” | SAE 12 | 3” | 6.75” | 4.0” | 3.96” | 2.83” | 1.26” | 1.25” | 1.515” | 2.5” | 1.969” | 7.64” |
SKU | BORE (INCH) | STROKE (INCH) | ROD Ø (INCH) | RETRACTES (INCHES) | EXTENDED (INCHES) | PIN Ø (INCH) | PORT SIZE | COLUMN LOAD | WEIGHT LBS |
WCT 6X8 | 6 | 8 | 3 | 19 | 27 | 1.5 | SAE 12 |
79,300 |
98,3 |
WCT 6X12 | 6 | 12 | 3 | 23 | 35 | 1.5 | SAE 12 |
79,300 |
113,2 |
WCT 6X16 | 6 | 16 | 3 | 27 | 43 | 1.5 | SAE 12 |
79,300 |
128,2 |
WCT 6X24 | 6 | 24 | 3 | 35 | 59 | 1.5 | SAE 12 |
79,300 |
158,1 |
WCT 6X30 | 6 | 30 | 3 | 41 | 71 | 1.5 | SAE 12 |
79,300 |
180,6 |
WCT 6X36 | 6 | 36 | 3 | 47 | 83 | 1.5 | SAE 12 |
79,300 |
203 |
WCT 6X48 | 6 | 48 | 3 | 61 | 109 | 1.5 | SAE 12 |
79,300 |
247,8 |
