Clevis end welded cylinders

Outstand performance for agricultural, transportation and waste recycling application. Manufactures under US specifications. Repair seal kits alway available. Desing for preasure uo to 3000 psi

Features:

  • Honed cold drawn tube.
  • Welded construction.
  • Cast iron piston and gland
  • Forged screw on clevis item.
  • Hard chromed, ground and polished piston shaft
  • Standar color is black

2'' BORE

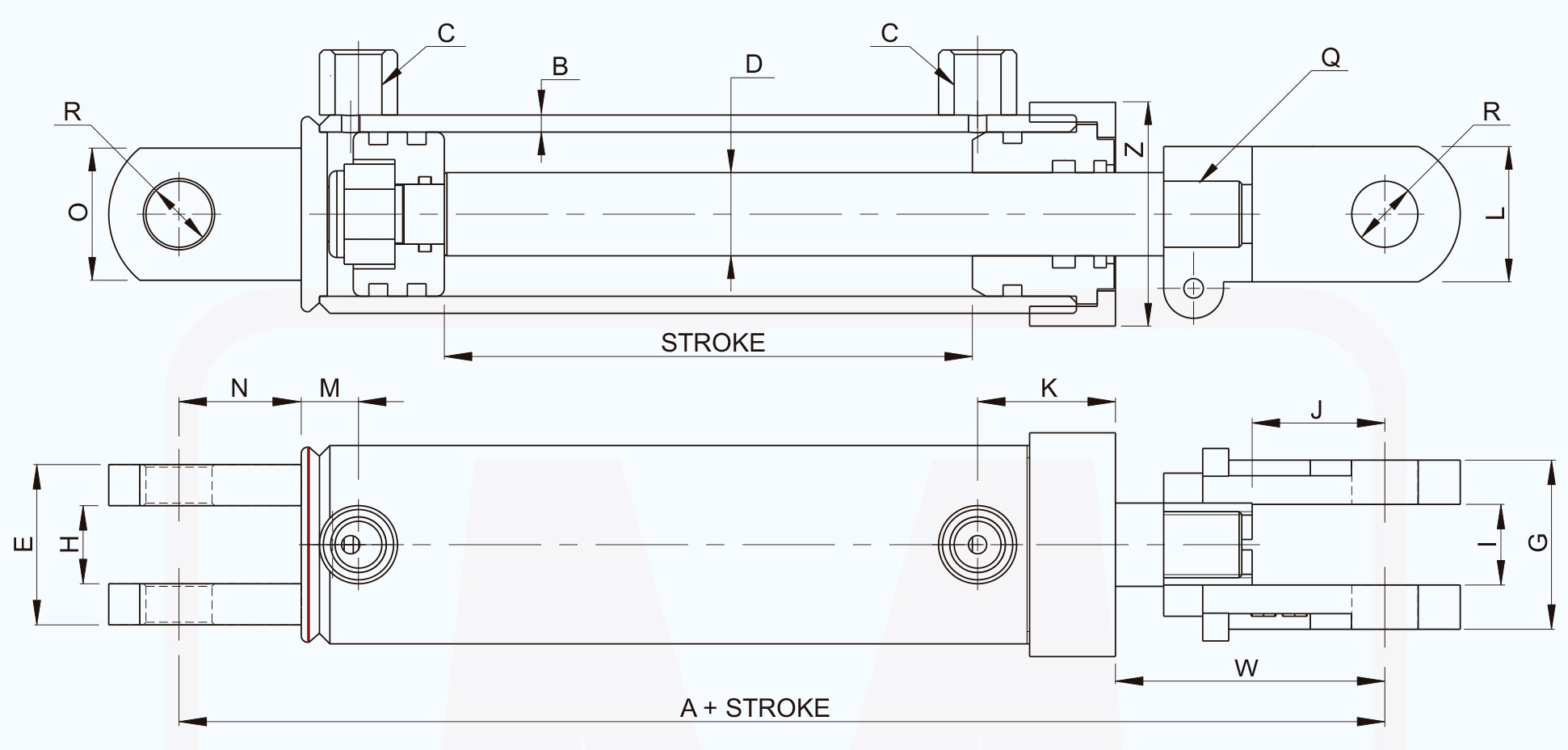

A B C D E G H I J K L M N O Q R W Z
10.25” .19” SAE 8 1.25” 2.62” 2.56” 1.13” 1.22” 2.16” 2.08” 2” .86” 1.85” 2” 1”
14UNF		 1.01”” 4.74” 2.75”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCL 2X4 2 4 1.25 14.25 18.25 1 SAE 8 9,400 15
WCL 2X6 2 6 1.25 16.25 22.25 1 SAE 8 9,400 16
WCL 2X8 2 8 1.25 18.25 26.25 1 SAE 8 9,400 18
WCL 2X8
ASAE		 2 8 1.25 20.25 28.25 1 SAE 8 9,400 19
WCL 2X10 2 10 1.25 20.25 30.25 1 SAE 8 9,400 19
WCL 2X12 2 12 1.25 22.25 34.25 1 SAE 8 9,400 20
WCL 2X14 2 14 1.25 24.25 38.25 1 SAE 8 9,400 21
WCL 2X16 2 16 1.25 26.25 42.25 1 SAE 8 9,400 24
WCL 2X18 2 18 1.25 28.25 46.25 1 SAE 8 9,400 26
WCL 2X20 2 20 1.25 30.25 50.25 1 SAE 8 9,400 28
WCL 2X24 2 24 1.25 34.25 58.25 1 SAE 8 7,700 30
WCL 2X30 2 30 1.25 40.25 70.25 1 SAE 8 5,700 33
WCL 2X36 2 36 1.25 46.25 82.25 1 SAE 8 3,900 37

2.5'' BORE

A B C D E G H I J K L M N O Q R W Z
10.25” .25” SAE 8 1.25” 2.62” 2.56” 1.13” 1.22” 2.16” 2.08” 2” .86” 1.85” 2” 1”
14UNF		 1.01” 4.08” 3.38”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCL 2.5X4 2.5 4 1.25 14.25 18.25 1 SAE 8 14,700 17
WCL 2.5X6 2.5 6 1.25 16.25 22.25 1 SAE 8 14,700 20
WCL 2.5X8 2.5 8 1.25 18.25 26.25 1 SAE 8 14,700 21
WCL 2.5X8
ASAE		 2.5 8 1.25 20.25 28.25 1 SAE 8 14,700 22
WCL 2.5X10 2.5 10 1.25 20.25 30.25 1 SAE 8 14,700 23
WCL 2.5X12 2.5 12 1.25 22.25 34.25 1 SAE 8 14,700 24
WCL 2.5X14 2.5 14 1.25 24.25 38.25 1 SAE 8 14,700 25
WCL 2.5X16 2.5 16 1.25 26.25 42.25 1 SAE 8 14,700 27
WCL 2.5X18 2.5 18 1.25 28.25 46.25 1 SAE 8 14,700 28
WCL 2.5X20 2.5 20 1.25 30.25 50.25 1 SAE 8 10,600 30
WCL 2.5X24 2.5 24 1.25 34.25 58.25 1 SAE 8 7,900 34
WCL 2.5X30 2.5 30 1.25 40.25 70.25 1 SAE 8 5,400 39
WCL 2.5X36 2.5 36 1.25 46.25 82.25 1 SAE 8 4,000 44

3'' BORE

A B C D E G H I J K L M N O Q R W Z
10.25” .25” SAE 8 1.5” 2.62” 2.56” 1.13” 1.22” 2.16” 2.08” 2” .98” 1.85” 2” 1.25”
12UNF		 1.01” 3.65” 4.01”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCL 3X4 3 4 1.5 14.25 18.25 1 SAE 8 21,200 22
WCL 3X6 3 6 1.5 16.25 22.25 1 SAE 8 21,200 24
WCL 3X8 3 8 1.5 18.25 26.25 1 SAE 8 21,200 26
WCL 3X8
ASAE		 3 8 1.5 20.25 28.25 1 SAE 8 21,200 29
WCL 3X10 3 10 1.5 20.25 30.25 1 SAE 8 21,200 29
WCL 3X12 3 12 1.5 22.25 34.25 1 SAE 8 21,200 31
WCL 3X14 3 14 1.5 24.25 38.25 1 SAE 8 21,200 32
WCL 3X16 3 16 1.5 26.25 42.25 1 SAE 8 21,200 36
WCL 3X18 3 18 1.5 28.25 46.25 1 SAE 8 21,200 37
WCL 3X20 3 20 1.5 30.25 50.25 1 SAE 8 21,200 40
WCL 3X24 3 24 1.5 34.25 58.25 1 SAE 8 16,400 44
WCL 3X30 3 30 1.5 40.25 70.25 1 SAE 8 11,300 50
WCL 3X36 3 36 1.5 46.25 82.25 1 SAE 8 8,200 55

3.5'' BORE

A B C D E G H I J K L M N O Q R W Z
10.25” .25” SAE 8 1.75” 2.62” 2.56” 1.13” 1.22” 2.16” 2.08” 2” 1.18” 1.85” 2” 1.25”
12UNF		 1.01” 3.37” 4.52”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCL 3.5X4 3.5 4 1.75 14.25 18.25 1 SAE 8 28,800 28
WCL 3.5X6 3.5 6 1.75 16.25 22.25 1 SAE 8 28,800 30
WCL 3.5X8 3.5 8 1.75 18.25 26.25 1 SAE 8 28,800 33
WCL 3.5X8
ASAE		 3.5 8 1.75 20.25 28.25 1 SAE 8 28,800 35
WCL 3.5X10 3.5 10 1.75 20.25 30.25 1 SAE 8 28,800 36
WCL 3.5X12 3.5 12 1.75 22.25 34.25 1 SAE 8 28,800 37
WCL 3.5X14 3.5 14 1.75 24.25 38.25 1 SAE 8 28,800 41
WCL 3.5X16 3.5 16 1.75 26.25 42.25 1 SAE 8 28,800 43
WCL 3.5X18 3.5 18 1.75 28.25 46.25 1 SAE 8 28,800 45
WCL 3.5X20 3.5 20 1.75 30.25 50.25 1 SAE 8 28,800 49
WCL 3.5X24 3.5 24 1.75 34.25 58.25 1 SAE 8 26,000 54
WCL 3.5X30 3.5 30 1.75 40.25 70.25 1 SAE 8 20,000 62
WCL 3.5X36 3.5 36 1.75 46.25 82.25 1 SAE 8 15,000 70

4'' BORE

A B C D E G H I J K L M N O Q R W Z
10.25” .29” SAE 8 2” 2.62” 2.56” 1.13” 1.22” 2.16” 2.08” 2” 1.18” 1.85” 2” 1.25”
12UNF		 1.01” 3.37” 5”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCL 4X4 4 4 2 14.25 18.25 1 SAE 8 37,000 35
WCL 4X6 4 6 2 16.25 22.25 1 SAE 8 37,000 39
WCL 4X8 4 8 2 18.25 26.25 1 SAE 8 37,000 43
WCL 4X8
ASAE		 4 8 2 20.25 28.25 1 SAE 8 37,000 45
WCL 4X10 4 10 2 20.25 30.25 1 SAE 8 37,000 47
WCL 4X12 4 12 2 22.25 34.25 1 SAE 8 37,000 50
WCL 4X14 4 14 2 24.25 38.25 1 SAE 8 37,000 55
WCL 4X16 4 16 2 26.25 42.25 1 SAE 8 37,000 57
WCL 4X18 4 18 2 28.25 46.25 1 SAE 8 37,000 61
WCL 4X20 4 20 2 30.25 50.25 1 SAE 8 37,000 65
WCL 4X24 4 24 2 34.25 58.25 1 SAE 8 36,000 73
WCL 4X30 4 30 2 40.25 70.25 1 SAE 8 33,000 83
WCL 4X32 4 32 2 42.25 74.25 1 SAE 8 31,000 88
WCL 4X36 4 36 2 46.25 82.25 1 SAE 8 26,000 94
