Cross tube welded cylinders

These high quality Cylinder Cross Tube Style  are manufactured in accordance with U.S. Standards, designed for a pressure up to 3000 PSI, Repair Kits are available in stock, The product created for use in various types of mobile equipment such as material handling, agriculture, waste, recycling, transportation, construction etc.

Features:

  • Honed Tubing
  • Welded construction
  • Cast iron piston and gland
  • Hard chromed, ground and polished piston shaft
  • Costumer sizes and mounting are available
  • Standard color is black

1,5” BORE

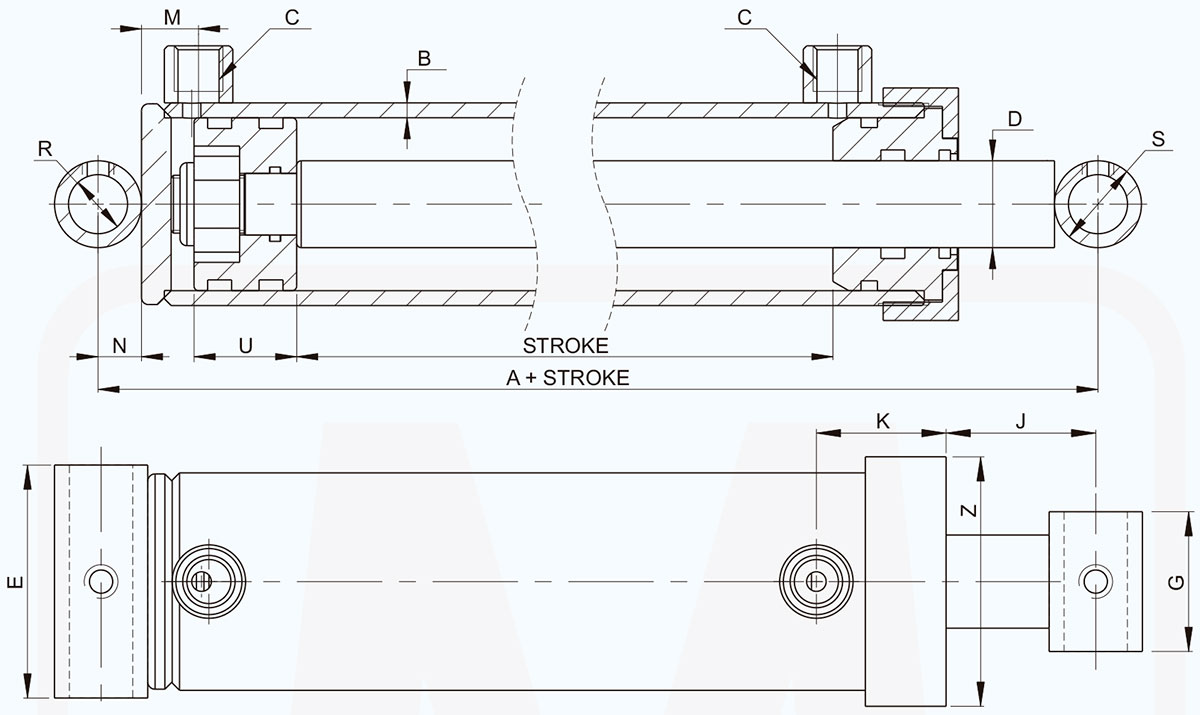

BORE A B C D E G J K M N R S U Z
1.5” 8” .17” SAE6 1.0” 2.25” 2.0” 3.9” 1.67” .70” .61” .76” 1.22” .98” 2.24”
SKU BORE (INCH) STROKE (INCH)

ROD Ø (INCH)

RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 1.5X4 1.5 4 1 12 16 0.75 SAE 6 5.300 10
WCT 1.5X6 1.5 6 1 14 20 0.75 SAE 6 5.300 11
WCT 1.5X8 1.5 8 1 16 24 0.75 SAE 6 5.300 12
WCT 1.5X10 1.5 10 1 18 28 0.75 SAE 6 5.300 13
WCT 1.5X12 1.5 12 1 20 32 0.75 SAE 6 5.300 14
WCT 1.5X14 1.5 14 1 22 36 0.75 SAE 6 5.300 15
WCT 1.5X16 1.5 16 1 24 40 0.75 SAE 6 5.300 16
WCT 1.5X18 1.5 18 1 26 44 0.75 SAE 6 5.300 18
WCT 1.5X20 1.5 20 1 28 48 0.75 SAE 6 5.300 19
WCT 1.5X22 1.5 22 1 30 52 0.75 SAE 6 4.620 21
WCT 1.5X24 1.5 24 1 32 56 0.75 SAE 6 4.210 22

2” BORE

BORE A B C D E G J K M N R S U Z
2.0” 8.0” .19” SAE6 1.25” 2.75” 2.25” 2.72” 1.88” .70” .70” 1.02”” 1.4” .98” 2.75”



SKU BORE (INCH) STROKE (INCH)

ROD Ø (INCH)

RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 2X4 2 4 1.25 12 16 1 SAE 9,400 10
WCT 2X6 2 6 1.25 14 20 1 SAE 6 9,400 12
WCT 2X8 2 8 1.25 16 24 1 SAE 6 9,400 13
WCT 2X10 2 10 1.25 18 28 1 SAE 6 9,400 15
WCT 2X12 2 12 1.25 20 32 1 SAE 6 9,400 16
WCT 2X14 2 14 1.25 22 36 1 SAE 6 9,400 17
WCT 2X16 2 16 1.25 24 40 1 SAE 6 9,400 19
WCT 2X18 2 18 1.25 26 44 1 SAE 6 9,400 20
WCT 2X20 2 20 1.25 28 48 1 SAE 6 9,400 22
WCT 2X22 2 22 1.25 30 52 1 SAE 6 8,800 24
WCT 2X24 2 24 1.25 32 56 1 SAE 6 8,400 25
WCT 2X28 2 28 1.25 36 64 1 SAE 6 6,200 27
WCT 2X30 2 30 1.25 38 68 1 SAE 6 5,700 29
WCT 2X32 2 32 1.25 40 72 1 SAE 6 5,200 31
WCT 2X36 2 36 1.25 44 80 1 SAE 6 4,100 33

2,5” BORE

BORE A B C D E G J K M N R S U Z
2.5” 8.0” .25” SAE 8 1.5” 3.25” 2.25” 2.99” 2.08” .78” .70” 1.02” 1.4” 1.37” 3.38”





SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 2.5X4 2.5 4 1.5 12 16 1 SAE 8 14,700 14
WCT 2.5X6 2.5 6 1.5 14 20 1 SAE 8 14,700 16
WCT 2.5X8 2.5 8 1.5 16 24 1 SAE 8 14,700 18
WCT 2.5X10 2.5 10 1.5 18 28 1 SAE 8 14,700 20
WCT 2.5X12 2.5 12 1.5 20 32 1 SAE 8 14,700 21
WCT 2.5X14 2.5 14 1.5 22 36 1 SAE 8 14,700 23
WCT 2.5X16 2.5 16 1.5 24 40 1 SAE 8 14,700 25
WCT 2.5X18 2.5 18 1.5 26 44 1 SAE 8 14,700 27
WCT 2.5X20 2.5 20 1.5 28 48 1 SAE 8 14,700 29
WCT 2.5X22 2.5 22 1.5 30 52 1 SAE 8 14,700 31
WCT 2.5X24 2.5 24 1.5 32 56 1 SAE 8 14,700 33
WCT 2.5X28 2.5 28 1.5 36 64 1 SAE 8 12,700 37
WCT 2.5X30 2.5 30 1.5 38 68 1 SAE 8 11,700 39
WCT 2.5X32 2.5 32 1.5 40 72 1 SAE 8 10,600 41
WCT 2.5X36 2.5 36 1.5 44 80 1 SAE 8 8,400 45
WCT 2.5X40 2.5 40 1.5 48 88 1 SAE 8 6,200 49
WCT 2.5X42 2.5 42 1.5 50 92 1 SAE 8 6,200 52
WCT 2.5X48 2.5 48 1.5 56 104 1 SAE 8 5,700 59

3” BORE

BORE A B C D E G J K M N R S U Z
3” 8.0” .25” SAE 8 1.5” 3.75” 2.25” 2.54” 2.08” .90” .70” 1.02” 1.4” 1.77” 4.01”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 3X4 3 4 1.5 12 16 1 SAE 8 21,000 17
WCT 3X6 3 6 1.5 14 20 1 SAE 8 21,000 19
WCT 3X8 3 8 1.5 16 24 1 SAE 8 21,000 22
WCT 3X10 3 10 1.5 18 28 1 SAE 8 21,000 24
WCT 3X12 3 12 1.5 20 32 1 SAE 8 21,000 26
WCT 3X14 3 14 1.5 22 36 1 SAE 8 21,000 28
WCT 3X16 3 16 1.5 24 40 1 SAE 8 21,000 30
WCT 3X18 3 18 1.5 26 44 1 SAE 8 21,000 32
WCT 3X20 3 20 1.5 28 48 1 SAE 8 21,000 34
WCT 3X22 3 22 1.5 30 52 1 SAE 8 20,500 37
WCT 3X24 3 24 1.5 32 56 1 SAE 8 18,000 40
WCT 3X28 3 28 1.5 36 64 1 SAE 8 14,400 44
WCT 3X30 3 30 1.5 38 68 1 SAE 8 12,200 46
WCT 3X32 3 32 1.5 40 72 1 SAE 8 10,900 49
WCT 3X36 3 36 1.5 44 80 1 SAE 8 8,800 53
WCT 3X40 3 40 1.5 48 88 1 SAE 8 8,400 59
WCT 3X42 3 42 1.5 50 92 1 SAE 8 8,400 64
WCT 3X48 3 48 1.5 56 104 1 SAE 8 6,200 72

3,5” BORE

BORE A B C D E G J K M N R S U Z
3.5” 10.0” .25” SAE 8 1.75” 4.25” 2.25” 4.01” 2.08” 1.10” .96” 1.27” 1.92” 1.77” 4.52”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 3.5X4 3 4 1.5 12 16 1 SAE 8 21,000 17
WCT 3.5X6 3 6 1.5 14 20 1 SAE 8 21,000 19
WCT 3.5X8 3 8 1.5 16 24 1 SAE 8 21,000 22
WCT 3.5X10 3 10 1.5 18 28 1 SAE 8 21,000 24
WCT 3.5X12 3 12 1.5 20 32 1 SAE 8 21,000 26
WCT 3.5X14 3 14 1.5 22 36 1 SAE 8 21,000 28
WCT 3.5X16 3 16 1.5 24 40 1 SAE 8 21,000 30
WCT 3.5X18 3 18 1.5 26 44 1 SAE 8 21,000 32
WCT 3.5X20 3 20 1.5 28 48 1 SAE 8 21,000 34
WCT 3.5X24 3 24 1.5 32 56 1 SAE 8 18,000 40
WCT 3.5X30 3 30 1.5 38 68 1 SAE 8 12,200 46
WCT 3.5X36 3 36 1.5 44 80 1 SAE 8 8,800 53

4” BORE

BORE A B C D E G J K M N R S U Z
4” 10.0” .29” SAE 8 2.0” 4.75” 2.5” 3.68” 2.08” 1.10” 1.09” 1.52” 2.18” 1.77” 5.0”



SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 4X4 4 4 2 14 18 1.5 SAE 8 37,700 36
WCT 4X6 4 6 2 16 22 1.5 SAE 8 37,700 40
WCT 4X8 4 8 2 18 26 1.5 SAE 8 37,700 43
WCT 4X10 4 10 2 20 30 1.5 SAE 8 37,700 46
WCT 4X12 4 12 2 22 34 1.5 SAE 8 37,700 50
WCT 4X14 4 14 2 24 38 1.5 SAE 8 37,700 53
WCT 4X16 4 16 2 26 42 1.5 SAE 8 37,700 57
WCT 4X18 4 18 2 28 46 1.5 SAE 8 37,700 60
WCT 4X20 4 20 2 30 50 1.5 SAE 8 37,700 64
WCT 4X24 4 24 2 34 58 1.5 SAE 8 37,700 74
WCT 4X30 4 30 2 40 70 1.5 SAE 8 35,700 86
WCT 4X32 4 32 2 42 74 1.5 SAE 8 32,000 90
WCT 4X36 4 36 2 46 82 1.5 SAE 8 26,000 97
WCT 4X40 4 40 2 50 90 1.5 SAE 8 21,000 106
WCT 4X42 4 42 2 52 94 1.5 SAE 8 20,500 118
WCT 4X48 4 48 2 58 106 1.5 SAE 8 18,000 130

5” BORE

BORE A B C D E G J K M N R S U Z
5” 11.0” .25” SAE 12 2.5” 5.75” 4.0” 4.11” 2.77” .98” 1.2” 1.52” 2.4” 1.96” 6.35”







SKU BORE (INCH) STROKE (INCH) ROD Ø (INCH) RETRACTES (INCHES) EXTENDED (INCHES) PIN Ø (INCH) PORT SIZE COLUMN LOAD WEIGHT LBS
WCT 5X16 5 16 2.5 27 43 1.5 SAE 12 58,900 93
WCT 5X20 5 20 2.5 31 51 1.5 SAE 12 58,900 105
WCT 5X24 5 24 2.5 35 59 1.5 SAE 12 58,900 117
WCT 5X30 5 30 2.5 41 71 1.5 SAE 12 58,900 132
WCT 5X36 5 36 2.5 47 83 1.5 SAE 12 58,900 149
WCT 5X48 5 48 2.5 59 107 1.5 SAE 12 37,700 180
